SKU: TIFC00007

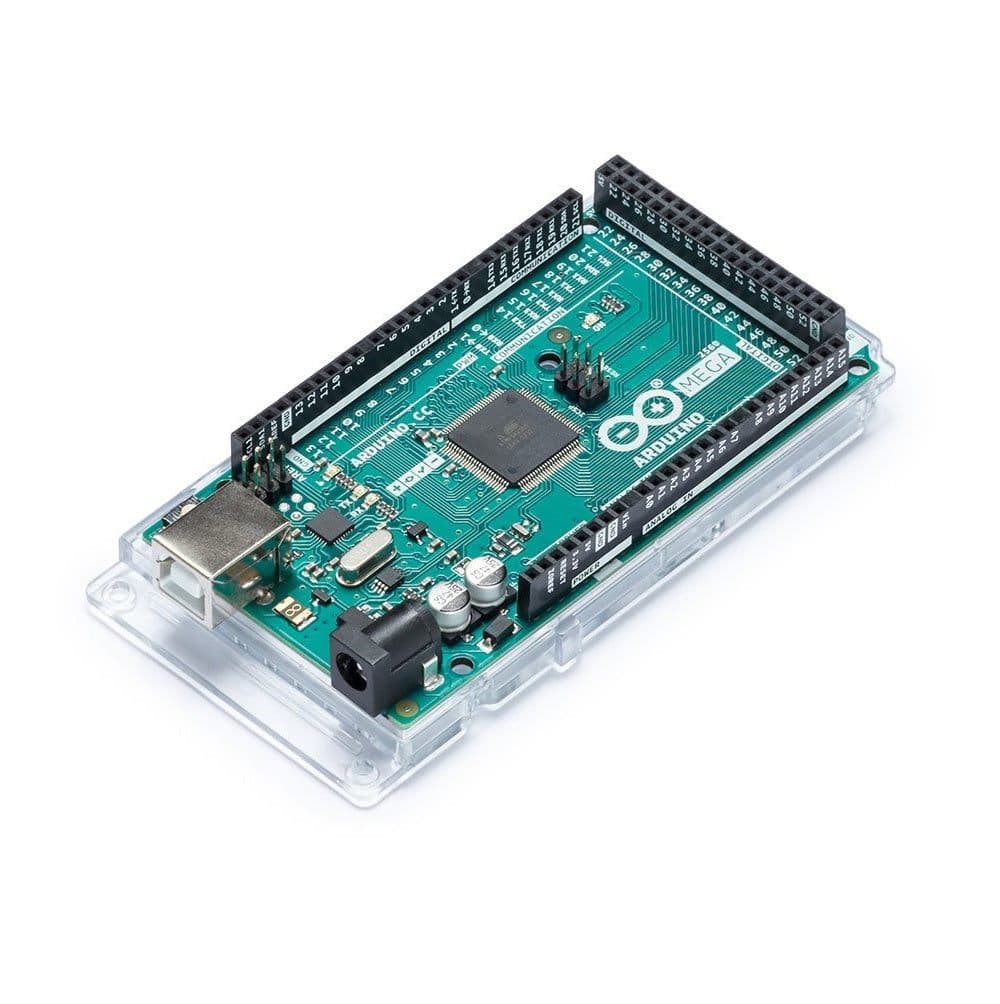

Original Arduino Mega 2560 Rev3 ATmega2560
Original Arduino Mega 2560 Rev3 board based on ATmega2560 with 54 digital I/O, 16 analog inputs, and 4 UARTs.
Check compatibility
Confirm logic level (3.3V / 5V) against your board before wiring. Open the compatibility checker →
All-India delivery via Shiprocket
Specifications
| SKU | TIFC00007 |
|---|---|
| Category | Arduino Boards |
Description
The Original Arduino Mega 2560 Rev3 is a microcontroller board based on the ATmega2560, featuring the ATmega16U2 as a USB-to-serial converter. It includes 54 digital input/output pins (14 PWM capable), 16 analog inputs, 4 hardware serial ports (UARTs), a 16 MHz crystal oscillator, USB connection, power jack, ICSP header, and reset button. The board is compatible with most shields designed for Arduino Uno, Duemilanove, or Diecimila. Power can be supplied via USB or external power supply (auto-selected).
- Microcontroller: ATmega2560
- Digital I/O Pins: 54 (14 PWM output)
- Analog Input Pins: 16
- UARTs: 4
- Crystal Oscillator: 16 MHz
- USB Connection: Yes
- Power Jack: Yes
- ICSP Header: Yes
- Reset Button: Yes
- Applications: Embedded Design, Industrial, Communications, Sensing, Automation
