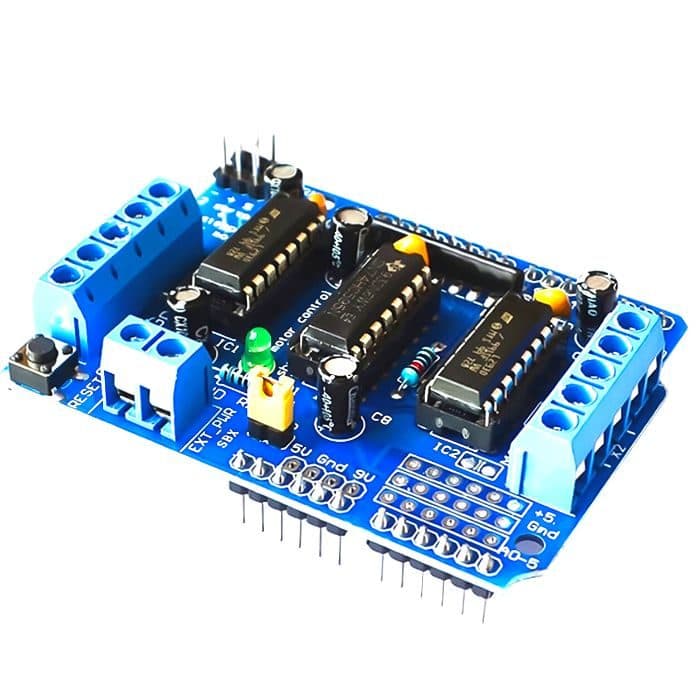

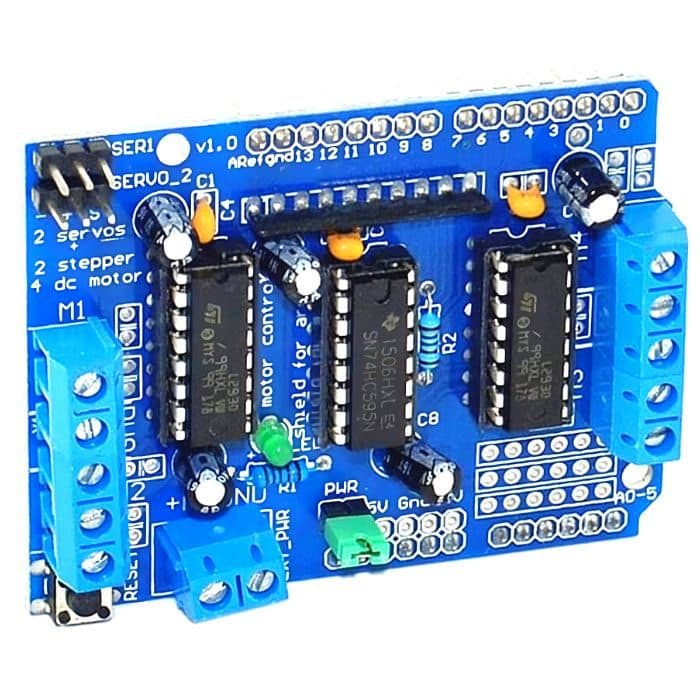

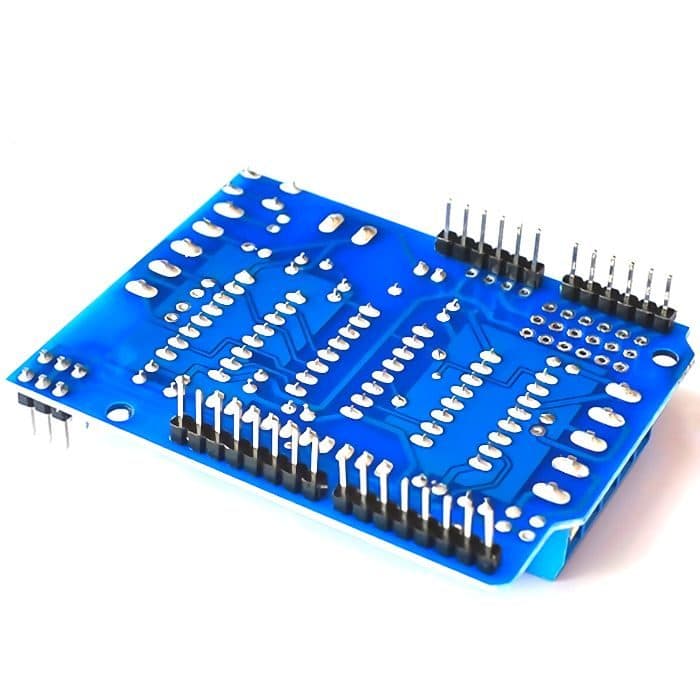

Arduino L293D Motor Driver Shield
Drive up to 4 DC motors or 2 stepper motors with this L293D-based shield for Arduino. Supports up to 0.6A per bridge.
Check compatibility
Confirm logic level (3.3V / 5V) against your board before wiring. Open the compatibility checker →
All-India delivery via Shiprocket Razorpay secure checkout GST invoice provided Genuine, tested stock
Specifications
| SKU | TIFMC0104 |
|---|---|
| Category | Arduino Boards |
Description
The L293D Motor Driver Shield for Arduino is a full-featured shield that can power many simple to medium-complexity projects. It can drive up to 4 DC motors (up to 600mA and 36V), or up to 2 stepper motors and servo motors. The shield integrates a 2-pin terminal block and jumper for external power, allowing separate logic/motor supplies.
- Two 5V ‘hobby’ servo connections to Arduino’s high-resolution dedicated timer
- L293D chipset: 0.6A per bridge (1.2A peak) with thermal shutdown protection and internal kickback protection diodes on four H-bridges
- Motor power: 4.5VDC to 25VDC
- Up to four bidirectional DC motors with individual 8-bit speed selection (0.5% resolution)
- Up to two unipolar or bipolar stepper motors with single coil, double coil, or interleaved stepping
- Pull-down resistors disable motors during power-up
- Large terminal block connectors for 18-26AWG wires and power
- Arduino reset button brought to top
- Compatible with Arduino Mega 1280/2560, Diecimila, Duemilanove, and UNO
