SKU: TIFSS0075

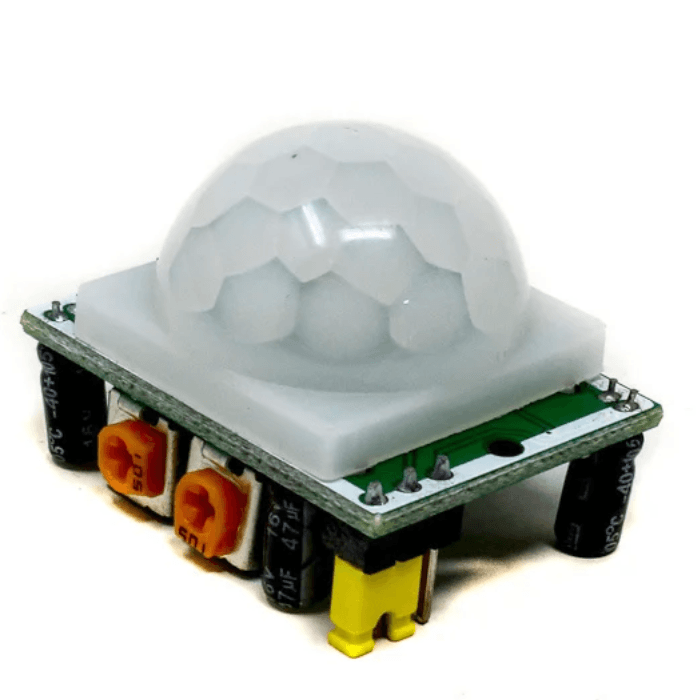

HC-SR501 PIR Motion Sensor Module
Passive infrared sensor for human motion detection. Adjustable time delay, low power, compatible with Arduino and Raspberry Pi.
Check compatibility
Confirm logic level (3.3V / 5V) against your board before wiring. Open the compatibility checker →
All-India delivery via Shiprocket Razorpay secure checkout GST invoice provided Genuine, tested stock
Specifications
| SKU | TIFSS0075 |
|---|---|
| Category | Sensors and Modules |
Description
The HC-SR501 PIR Motion Sensor Module detects human body motion using a pyroelectric sensor and Fresnel lens. It operates on 4.5~20V DC and features adjustable time delay (3 seconds to ~5 minutes) and repeat trigger selection. Ideal for security systems, automatic lighting, and DIY motion-sensing projects.
- Onboard pyroelectric sensor, conditioning circuitry, and dome-shaped Fresnel lens
- Low power consumption
- Operating voltage: 4.5 ~ 20V DC
- Adjustable time delay: 3 seconds to approximately 5 minutes
- Repeat Trigger Selection Jumper
- Output High on detection, auto Low when body leaves range
- Compatible with Arduino, Raspberry Pi, AVR, PIC, 8051, etc.
