SKU: TIFSS0171

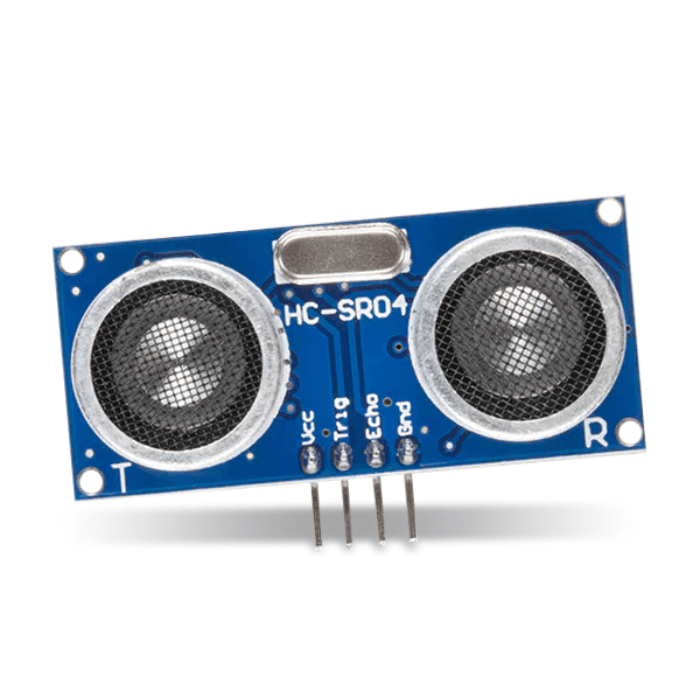

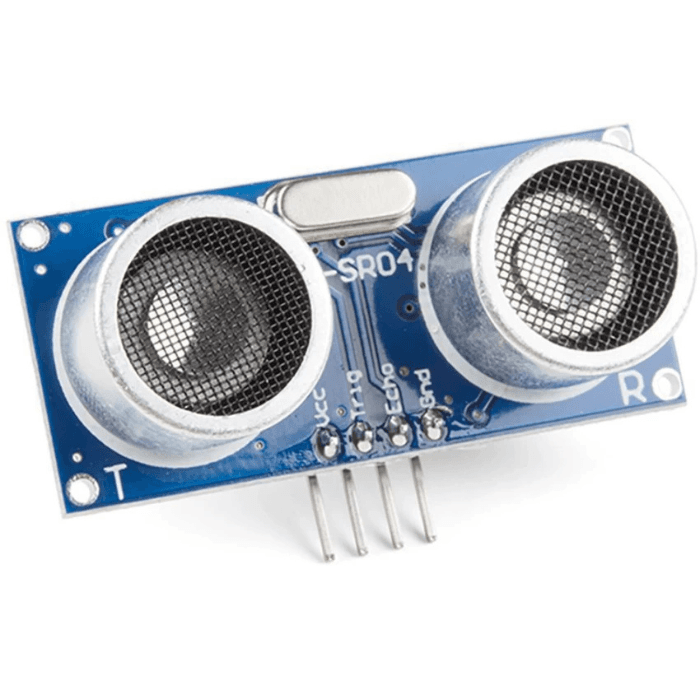

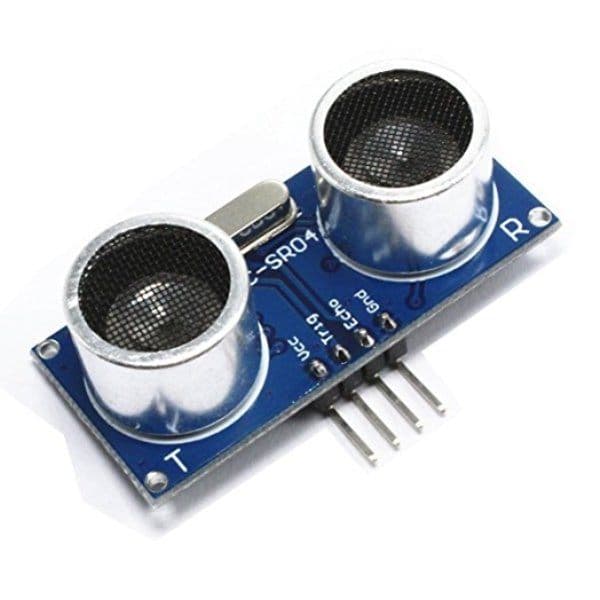

HC-SR04 Ultrasonic Distance Sensor Module
Non-contact distance sensor measuring 2cm to 400cm with 3mm accuracy. Ideal for Arduino, Raspberry Pi, and robotics projects.
Check compatibility
Confirm logic level (3.3V / 5V) against your board before wiring. Open the compatibility checker →
All-India delivery via Shiprocket
Specifications
| SKU | TIFSS0171 |
|---|---|
| Category | Sensors and Modules |
Description

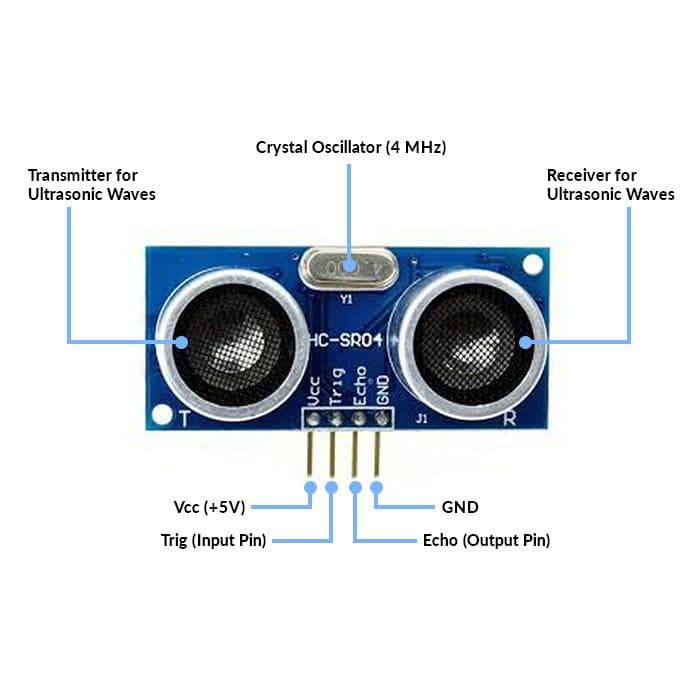

The HC-SR04 Ultrasonic Distance Sensor Module is a compact, easy-to-use module that includes a transmitter, receiver, and control circuit. It uses sonar technology to measure distance from 2 cm to 400 cm with high accuracy (3 mm). It operates at 5V DC and consumes 15mA current. The module has two main pins: Trigger (to send ultrasonic pulses) and Echo (to receive reflected signals). It is ideal for obstacle detection, distance measurement, and mapping in robotics and IoT applications.

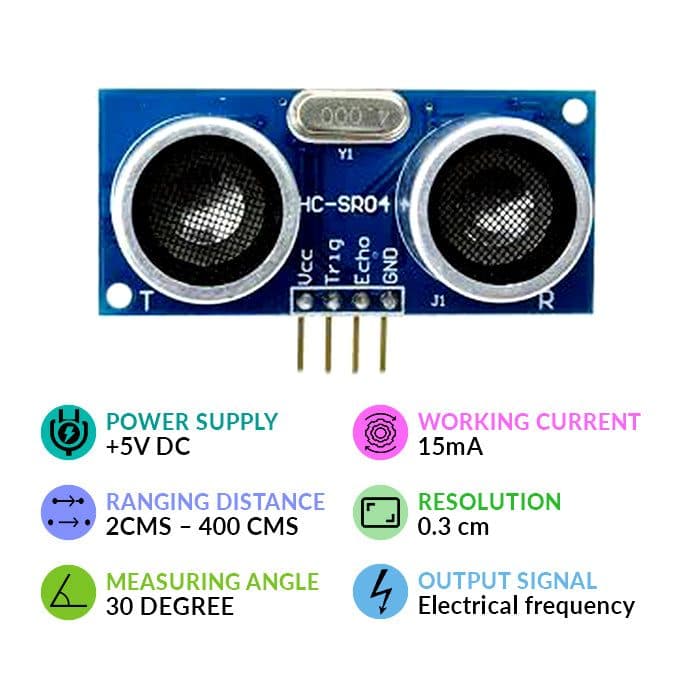

- Non-contact distance measurement
- Range: 2 cm to 400 cm
- Resolution: 0.3 cm
- Measuring angle: < 15°
- Operating voltage: 5V DC
- Operating current: 15mA
- Works with Arduino and Raspberry Pi (5V output needs level shifting for Pi)
- Stable performance indoors and outdoors
